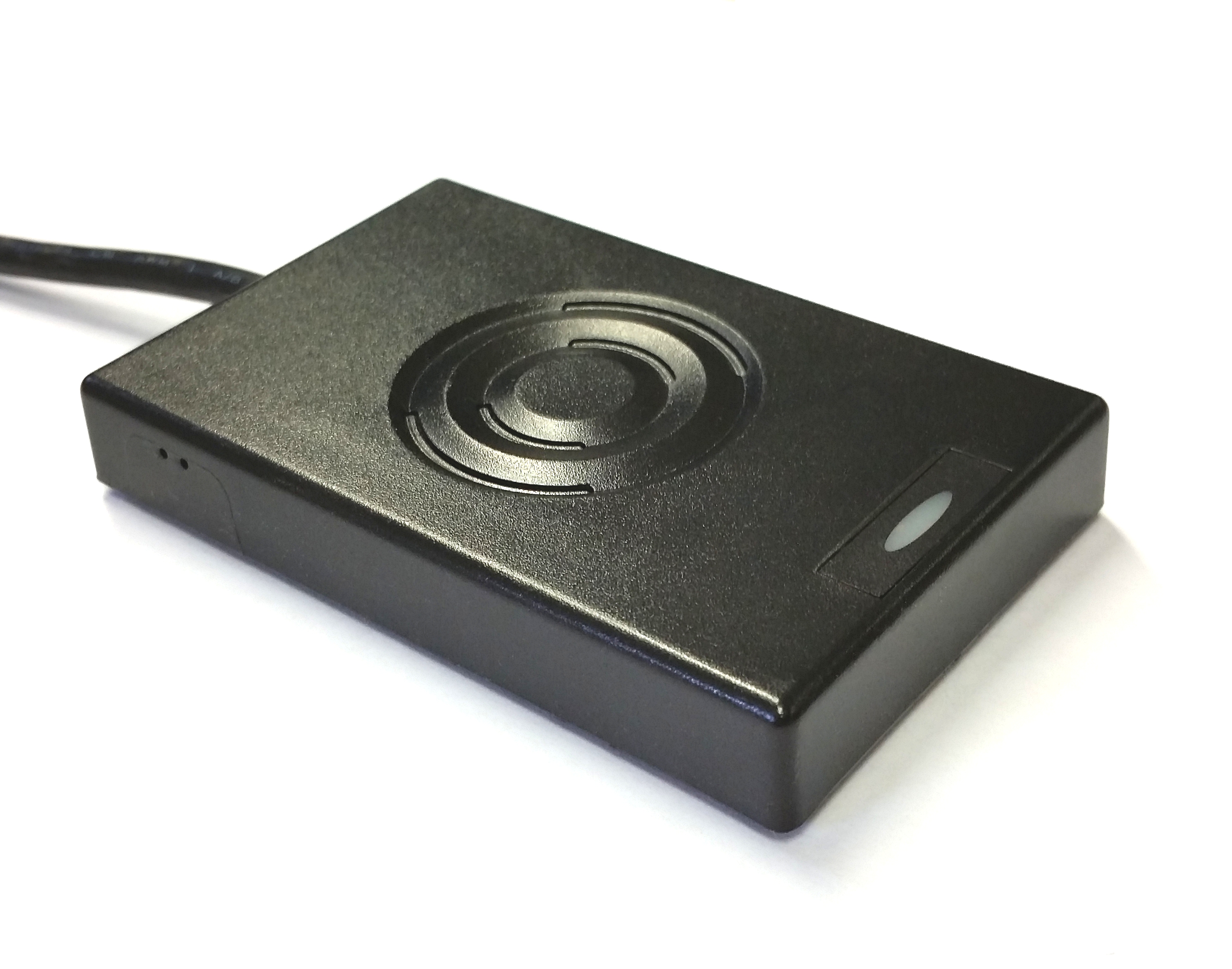

A-DESK Desktop USB Reader

a-desk_001

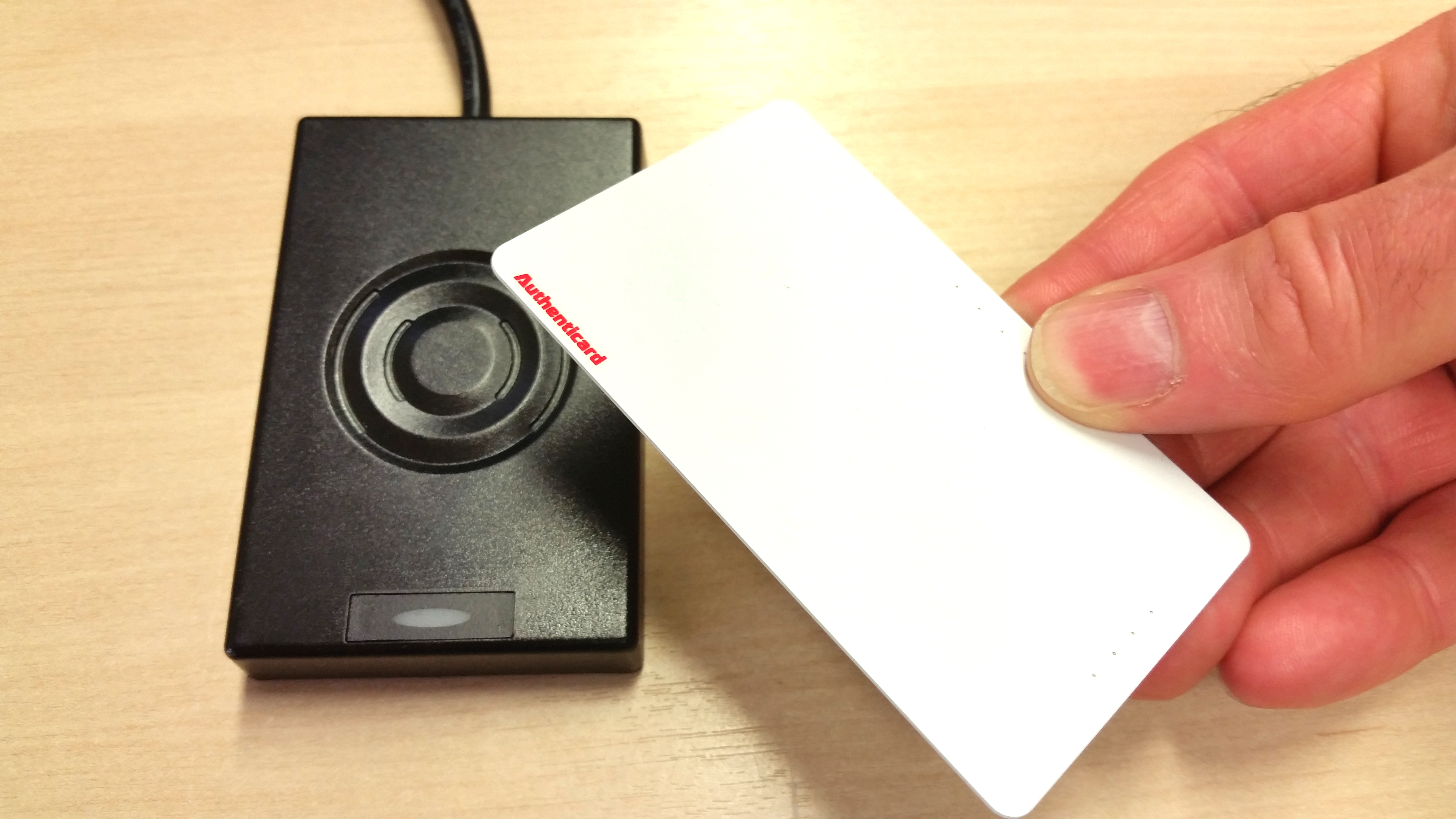

The Authenticard A-DESK desktop reader provide the ideal compliment for your Authenticard credentials. Designed specifically for access control systems, A-KEYPAD is available in many versions for use with most credential technologies. The touch-sensitive keypad with OLED backlighting eliminates moving parts and features a smooth hardened acrylic surface making it suitable for both outdoor and indoor use.


DESIGN

  • Integrated reader with choice of technologies including proximity, MIFARE, DESFire, Authentifire and Legic
  • Touch-sensitive keypad eliminates moving parts for enhanced reliability
  • Suitable for both indoor and outdoor use – weatherproof to IP65
  • Can be mounted on metal without degradation of read range
  • Universal metal back-plate allows easy installation on a UK, EU & US single-gang back-box as well as direct wall mounting
  • Fully encapsulated construction

FEATURES

  • Compatible with all standard access control systems
  • Backlit Keypad
  • 4-colour OLED indication
  • Integral beeper
  • Tamper Protection Output
  • 12VDC Operation
  • EU (CE) Certification

TECHNOLOGIES

  • 125KHz Proximity (A-DESK-125)
  • MIFARE (A-DESK-CSN)
  • DESFire (A-DESK-EV1)
  • Authentifire (A-DESK-AF)
  • Legic (A-DESK-LEG)




A-DESK SPECIFICATIONS

A-DESK-125 A-DESK-CSN/EV1/AF/L
Operating Frequency 125 KHz 13.56 MHz
Communication Proximity ISO 14443A 1-4
Read Range

A-ISO
A-CLAM
A-FOB
A-BAND
A-PATCH
A-PM (Dual Technology)
A-ISO-D4K


TBA
TBA
TBA
TBA
TBA
TBA
-


-
-
-
-
-
TBA
TBA
Net Weight 230 g
Connection USB Lead
Keypad None
Dimensions 85.8mm x 54mm x 12mm
Power Requirement USB powered (4-6VDC @ 150mA peak)
Operating Temperature 0°C to 55°C
Conformity CE (R&TTE & RoHS)
Casing Material Polycarbonate and ABS
Colour Black
Host Protocol USB 2.0 or USB1.1
