A-SWITCH Switch-Plate Reader

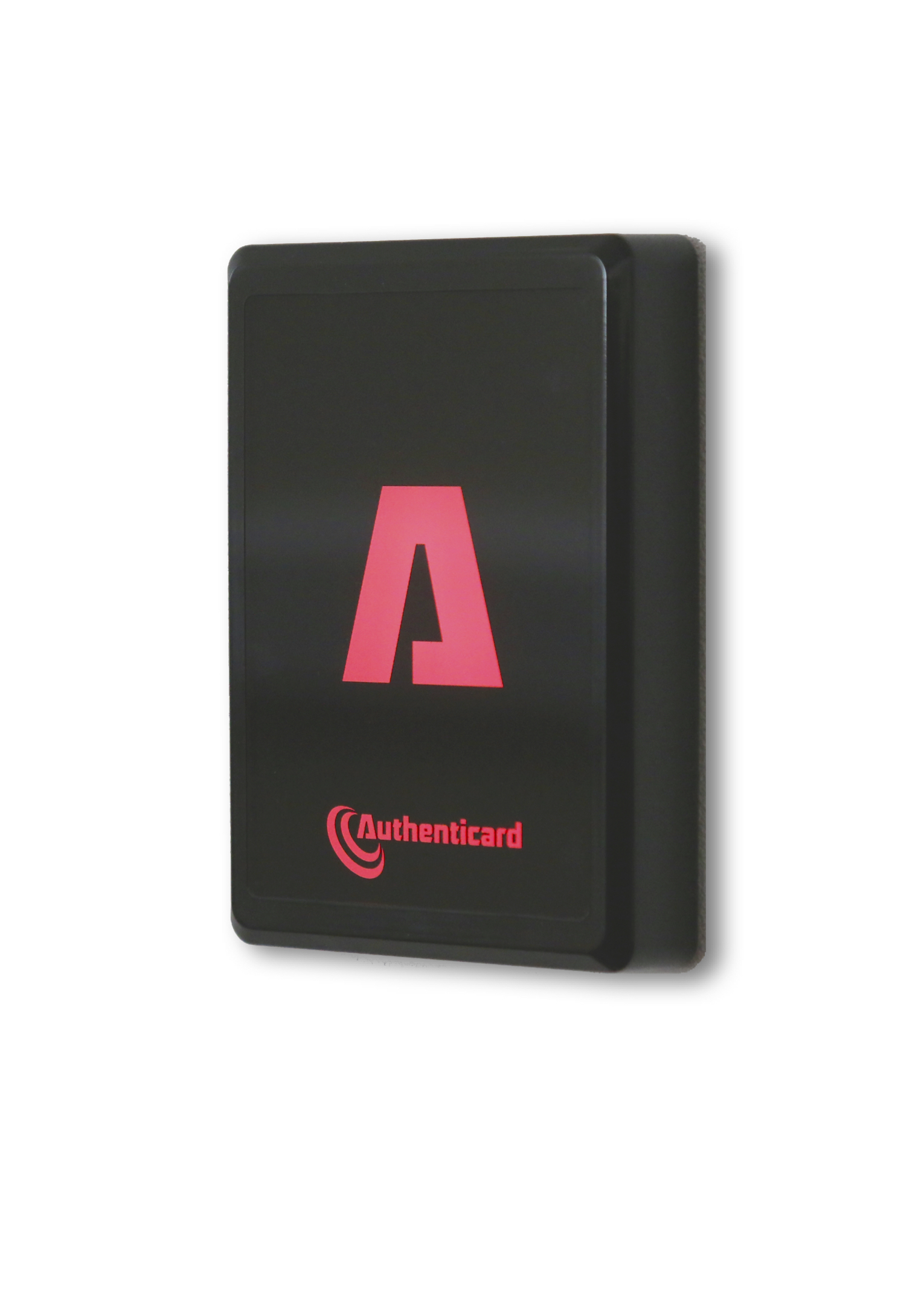

LR R

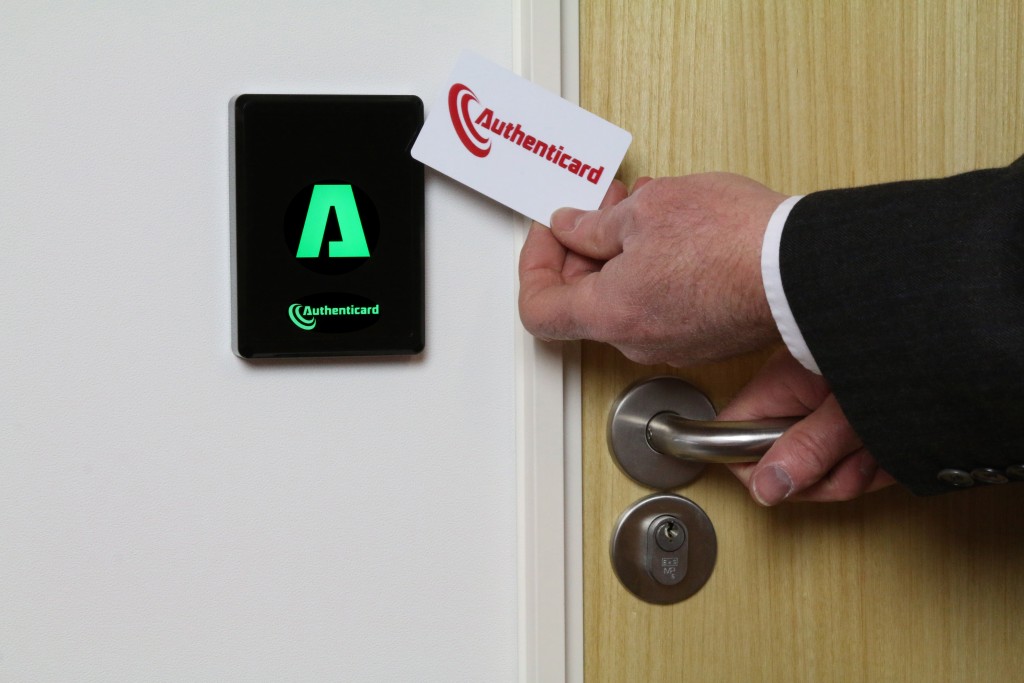

The Authenticard A-SWITCH range of Switch-Plate readers provides the ideal compliment for your Authenticard cards and tags. Designed specifically for access control systems, A-SWITCH is available in many versions for use with most card / tag technologies. OLED backlit annunciation provides clear indication of access status from the access control system.  Finished with a smooth hardened acrylic surface,  A-SWITCH is suitable for both outdoor & indoor use.


DESIGN

  • Ideal for fitting to a standard UK/US/EU single-gang backbox
  • Integrated reader with choice of technologies including proximity, MIFARE, DESFire, Authentifire and Legic
  • Suitable for both indoor and outdoor use – weatherproof to IP65
  • Can be mounted on metal without degradation of read range
  • Universal metal back-plate allows easy installation on a UK, EU & US single-gang back-box as well as direct wall mounting
  • Fully encapsulated construction

FEATURES

  • Compatible with all standard access control systems
  • 4-colour OLED indication
  • Integral beeper
  • Tamper Protection Output
  • 12VDC Operation
  • EU (CE) Certification

TECHNOLOGIES

  • 125KHz Proximity (A-KEYPAD-125)
  • MIFARE (A-KEYPAD-CSN)
  • DESFire (A-KEYPAD-EV1)
  • Authentifire (A-KEYPAD-AF)
  • Legic (A-KEYPAD-LEG)


a-keypad_backplate drawing_004ga-keypad_side-on drawing_006Installation is made easy with the universal metal backplate designed to fit to a single-gang backbox or for surface mounting. Positioning and alignment can be made prior to securing the reader which locates onto latching tabs at the top and an integral non-drop screw located underneath.


A-SWITCH SPECIFICATIONS

A-SWITCH-125 A-SWITCH-CSN/EV1/AF/L
Operating Frequency 125 KHz 13.56 MHz
Communication Proximity ISO 14443A 1-4
Read Range

A-ISO
A-CLAM
A-FOB
A-BAND
A-PATCH
A-PM (Dual Technology)
A-ISO-D4K


up to 50 mm
up to 80 mm
up to 60 mm
up to 30 mm
up to 20 mm
up to 40 mm
-


-
-
-
-
-
up to 25 mm
up to 25 mm
Net Weight 230 g
Installation Integral Metal Back-Plate
Connection 300mm Pigtail
Keypad None
Dimensions 115.5mm x 84.5mm x 20.5mm
Power Requirement 10-15 VDC @ 150 mA
Operating Temperature -30°C to 70°C
Protection Rating IP65
Cable Distance Up to 150 Metres
Conformity CE (R&TTE, RoHS)
Casing Material Polycarbonate and ABS
Colour Black
Output Protocol Wiegand
